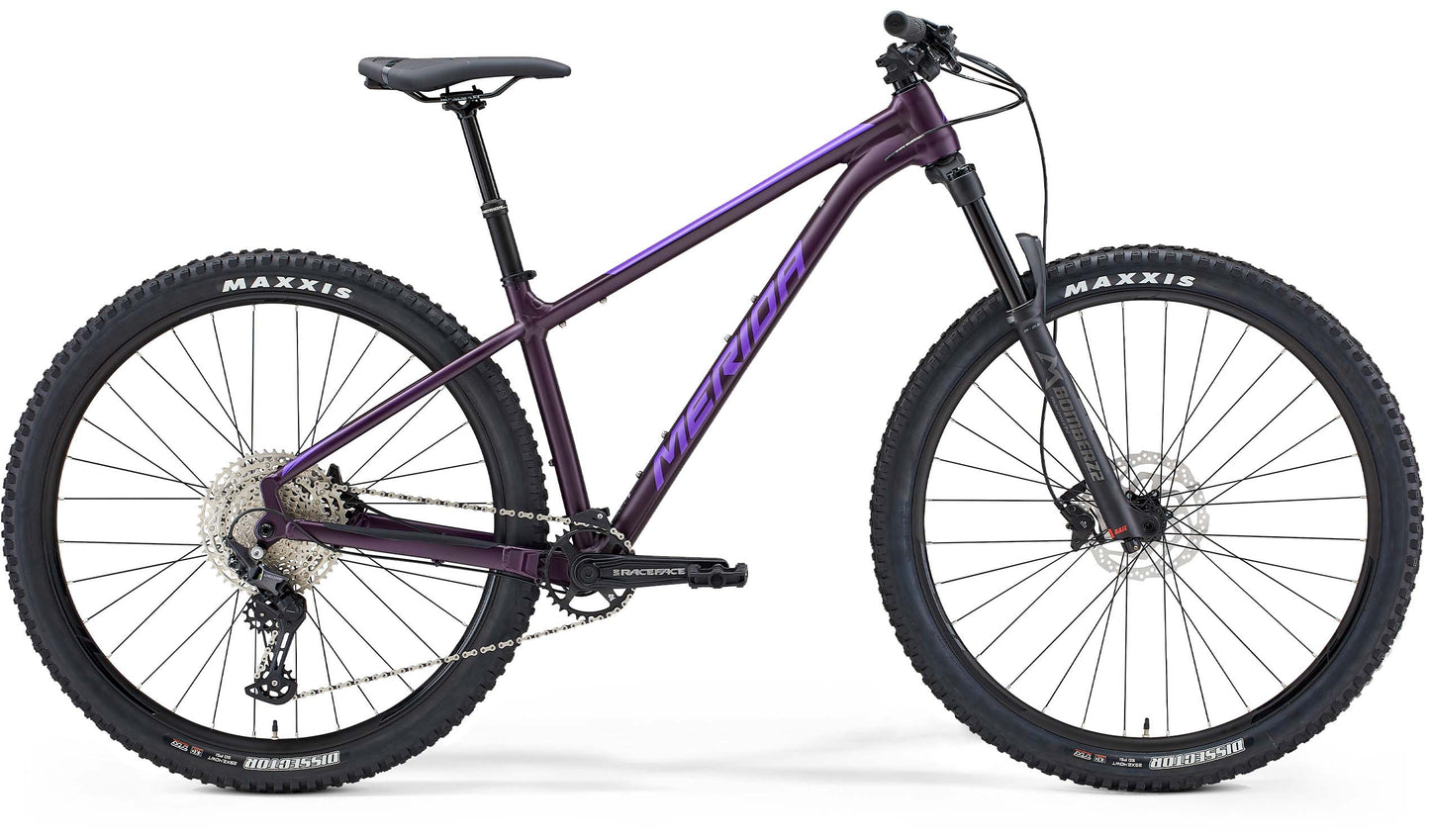

Merida Big Trail 600

TFS - 6061 series double butted and technoformed aluminium tubing with smooth welding. Modern trail bike geometry. Class leading, premium technologies such as Boost axle standard, tapered head tube, inboard disc mounts, internal cable routing.

Marzocchi Z2; Air; 140mm travel; Tapered; 44mm fork offset

Merida M2331

Merida Expert TR; aluminium; 35mm diameter; 0 degree rise - Length : 50 mm all sizes

Merida Expert TR; aluminium; 780mm wide; 20mm rise

Merida Comp EC

Hydraulic disc

Shimano M4100

Front: Shimano M4100; 2 piston hydraulic disc brake with Shimano RT10; 180mm rotor Rear: Shimano M4100; 2 piston hydraulic disc brake with Shimano RT10; 180mm rotor

Front: Maxxis Dissector; 29 x 2.4; Kevlar bead; folding; TR EXO Dual Rear: Maxxis Dissector; 29 x 2.4; Kevlar bead; folding; TR EXO Dual

29

Rims: Merida Expert TR; 29mm inner rim width; Material: aluminium; Tubeless ready (tubeless tape and valves not included) Spokes: Black stainless Front Hub: Shimano MT400-B; 110x15mm; 32 spokes; Centerlock Rear Hub: Shimano MT410-B; 148x12mm; 32 spokes; Centerlock; including removable lever with 4/6mm Allen key

12

Shimano Deore M6100 Shadow+

Shimano Deore M6100

KMC X12

Shimano Deore M6100; 10-51 teeth; 12 speed

Race Face Ride; 32 teeth chainwheel with 170mm - S, 175mm - M up length crank with Mr. Control CH-CM1 chain guide

Race Face BSA 68/73 - 24mm

Not included

Merida Comp CC with saddlebox containing Merida Multitool

Merida Comp TR; 30.9mm diameter; in-line; S: 125mm drop - M/L/XL: 150mm drop with Shimano SL -MT500-IL lever
