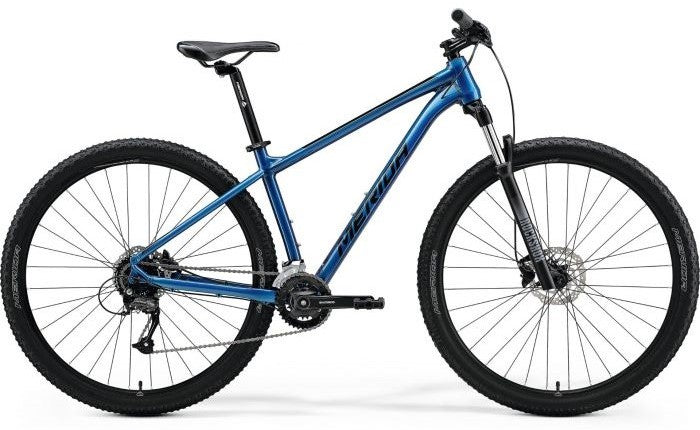

Merida Big Seven 60 Blue

29er hardtail with sophisticated TFS aluminium frame, 2 x 9 drivetrain, RockShox Judy fork and complete Shimano drivetrain, Shimano hubs, and hydraulic disc brakes.

FORK
Rock Shox Judy TK; Coil; 100mm suspension travel Lockout; 46mm fork offset
WHEEL SIZE
29"
RIMS
Merida CC; 17mm inner width; Material: aluminium
SPOKES
Black steel
FRONT HUB
Shimano TX505; 100x9mm; 32 spokes; Centerlock
REAR HUB
Shimano TX505; 135x9mm; 32 spokes; Centerlock
FRONT TYRE
Merida K1080; 29" x 2.2"; wire bead
REAR TYRE
Merida K1080; 29" x 2.2"; wire bead
GEARS
18
SHIFTERS
Shimano ST-EF505
FRONT DERAILLEUR
Shimano FD-M2020-TS
REAR DERAILLEUR
Shimano RD-M370
CHAINSET
Shimano MT101-2; 36-22 teeth chainwheel with 170mm - S, 175mm - M/XXL length crank
CASSETTE
Shimano CS-HG200; 11-32 teeth; 9 speed
BOTTOM BRACKET
Shimano BB-UN100 (or FSA TH-7420ST if Shimano supply is delayed)
CHAIN
KMC M99
PEDAL
VP Components, VPE-891
BRAKE LEVER
Shimano BR-MT200 (or Tektro HD-M275 if Shimano supply is delayed)
FRONT BRAKE
Shimano BR-MT200 (or Tektro HD-M275) hydraulic brake caliper with Shimano RT10; 160mm rotor
REAR BRAKE
Shimano BR-MT200 (or Tektro HD-M275) hydraulic brake caliper with Shimano RT10; 160mm rotor
GRIP
Merida EC
HANDLEBAR
Merida CC; aluminium; 690mm width; 15mm rise
STEM
Merida CC; aluminium; 31.8mm diameter; 6 degree stem angle - Length : 70 mm-S, 80 mm-M, 90 mm-L, 100 mm-XL, 110 mm-XXL
HEAD SET
Merida M2345
SADDLE
Merida Sport comfort
SEAT POST
Merida CC; aluminium; 30.9mm diameter; 15mm setback
